Aluminum Guide Roller

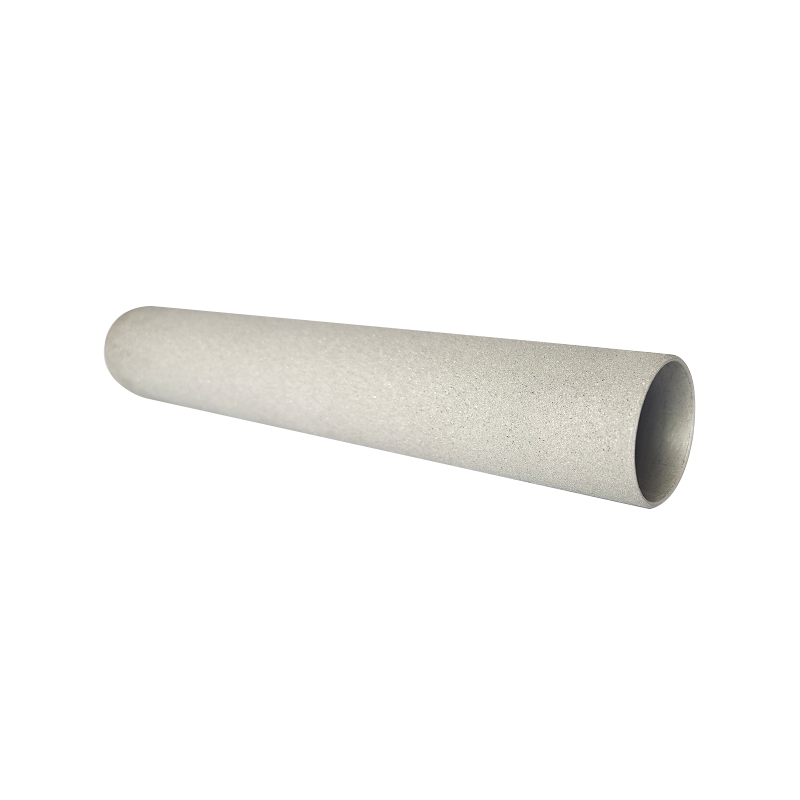

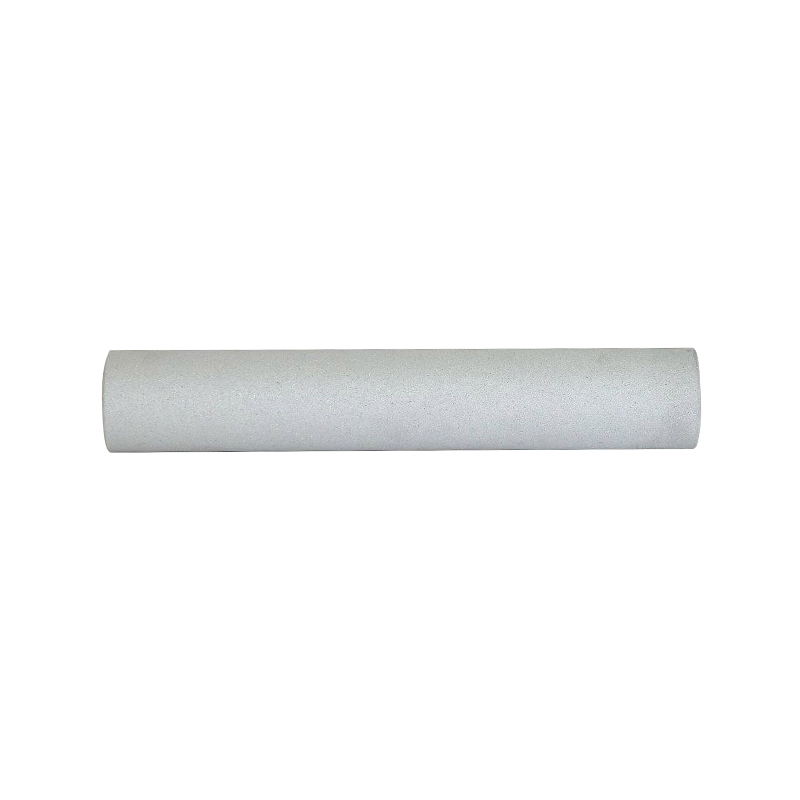

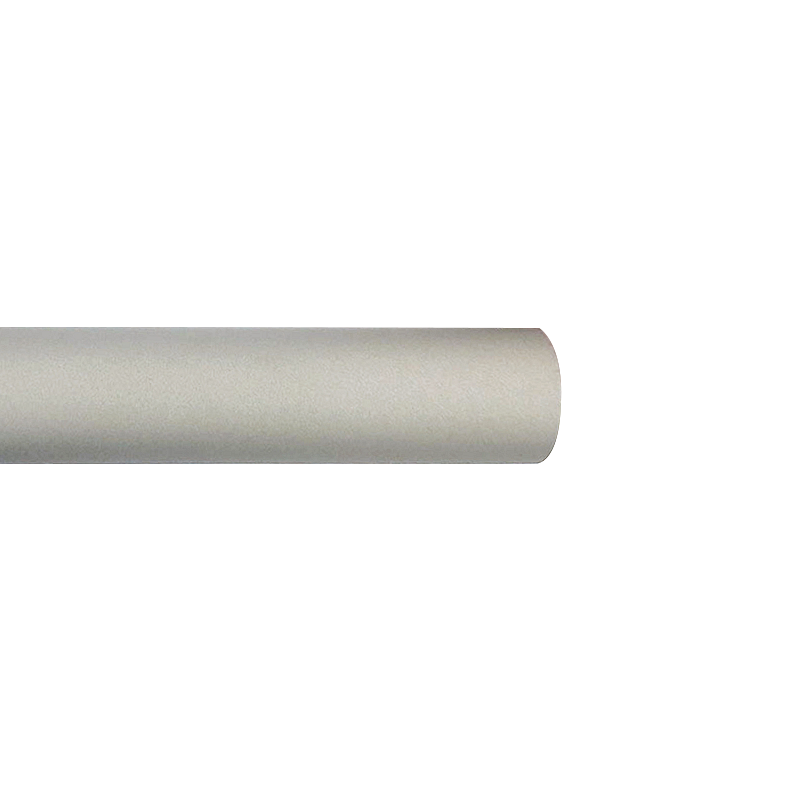

Fine Sand Spraying Hollow Aluminum Guide Roller

The fine sand spraying hollow aluminum guide roller is a hollow aluminum alloy guide roller with a sandblasted surface. It has a fine and uniform surface, good friction characteristics and anti-slip performance, and is suitable for various roll material conveying systems.

Inquire
Details

Fine-textured surface: Provides gentle friction, preventing scratches or slippage of the roll material.

Hollow, lightweight structure: Reduces overall weight, lowers energy consumption, and improves operational flexibility.

Aluminum alloy material: Offers excellent corrosion resistance and thermal conductivity, suitable for various environments.

Uniform surface texture: Helps maintain flat roll operation and improves guiding stability.

Low maintenance: The surface is not prone to dust accumulation, making cleaning easy and extending service life.

Applications: Widely used in film, paper, nonwoven fabric, packaging, and printing equipment for roll material guiding and tension balance control.

(De)Φ (D)Φ THICKNESS T1 T2,T3 Number of stiffeners
Φ22 Φ16 3  ◉
Φ25 Φ20 2.5  ◉
Φ31 Φ23 4  ◉
Φ31 Φ25 3  ◉
Φ34 Φ26 4  ◉
Φ38 Φ30 4  ◉
Φ40 Φ30 5  ◉
Φ43 Φ33 5  ▲
Φ50 Φ40 5  ▲
Φ55 Φ45 5  ▲
Φ57 Φ50 3.5  ▲
Φ59 Φ50 4.5  ▲
Φ60 Φ50 5  10  ▲ 6
Φ70 Φ61 4.5  10  ▲ 6
Φ75 Φ66 4.5  10  ▲ 6
Φ81 Φ71 5  10  ▲ 8
Φ91 Φ81 5  10  ▲ 8
Φ101 Φ91 5  11  ▲ 8
Φ101 Φ87 7  11  ▲ 8
Φ111 Φ99 6  12  ▲ 8
Φ121 Φ109 6  12  ▲ 9
Φ131 Φ118 6.5  13  ▲ 9
Φ141 Φ128 6.5  13  ▲ 9
Φ151 Φ137 7  14  ▲ 9
Φ201 Φ179 11
Φ300 Φ270 15
