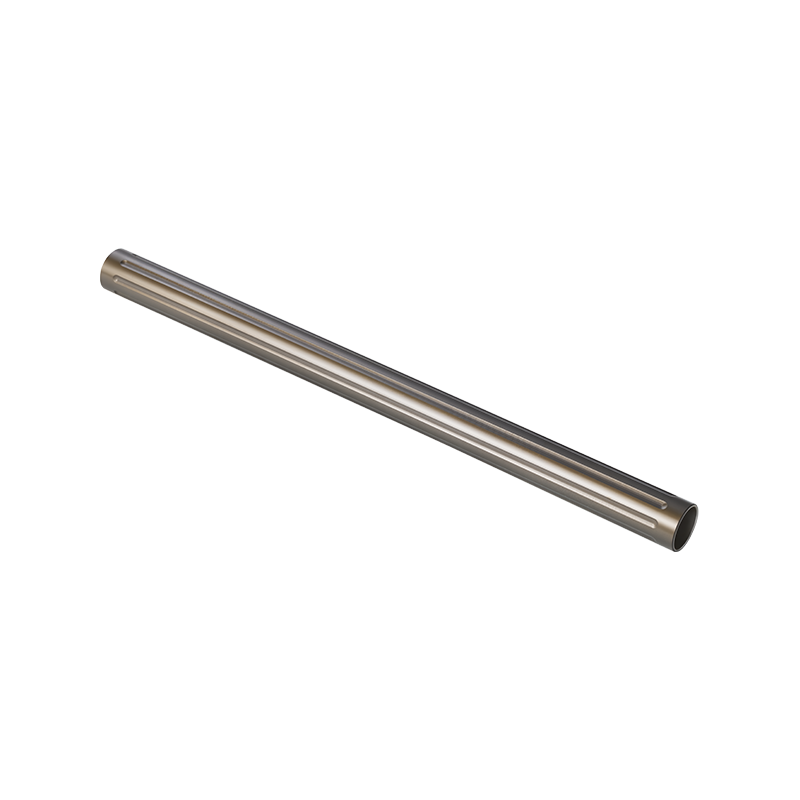

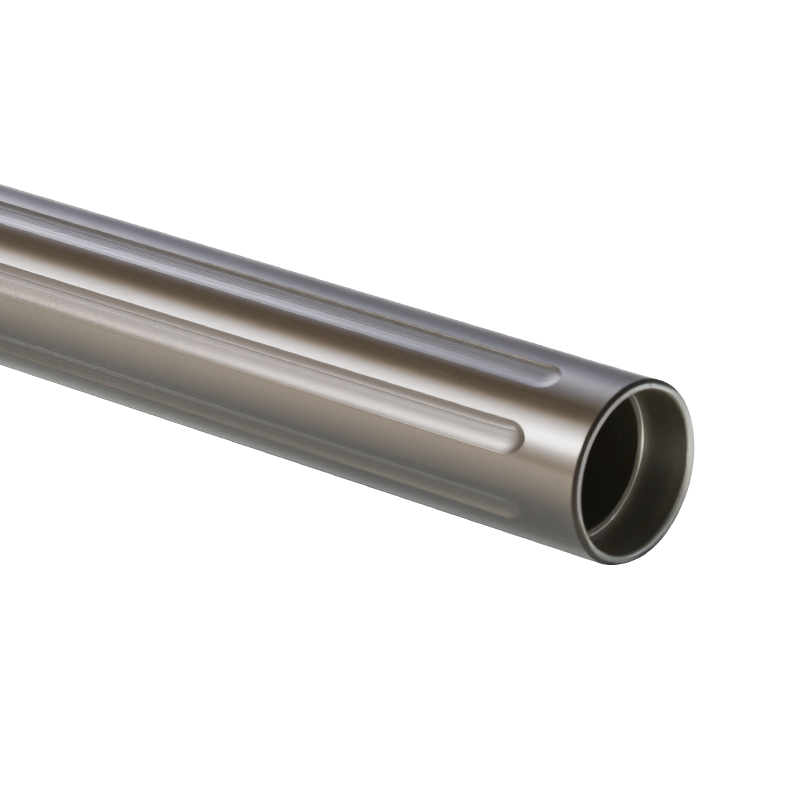

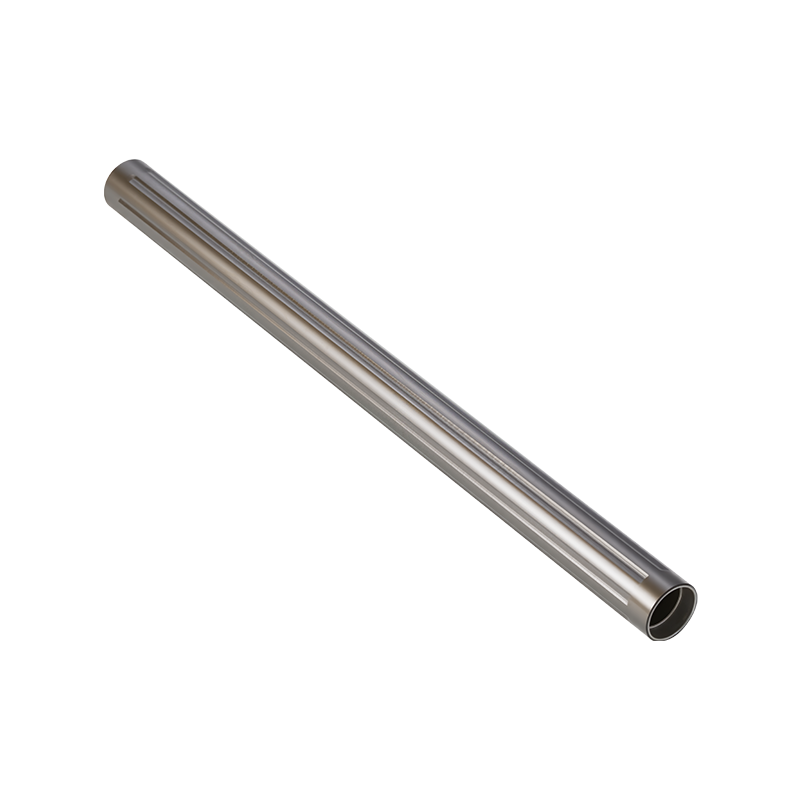

Patterned Outer Diameter Hard Anodized Aluminum Guide Roller
This patterned outer diameter hard anodized aluminum guide roller is highly sought after in the market for its good performance and attractive appearance.
This patterned outer diameter hard anodized aluminum guide roller is highly sought after in the market for its good performance and attractive appearance.
It is made of hard anodized aluminum, a material with exceptional hardness and wear resistance, ensuring stable performance over extended use.
The roller's surface is meticulously designed with a unique pattern, which not only enhances its aesthetics but also provides enhanced anti-slip properties and safety during use.
The optimally designed diameter of this guide roller adapts to a variety of industrial applications, such as printing and textiles. Its precisely machined outer diameter ensures a perfect fit with machinery and reduces the possibility of wear and failure.
Our hard anodized aluminum guide roller, with its durability, aesthetics, and versatility, has become an indispensable, high-quality component in industrial production.
(De)Φ | (D)Φ | THICKNESS | T1 | T2,T3 | Number of stiffeners |
Φ22 | Φ16 | 3 | ◉ | ||
Φ25 | Φ20 | 2.5 | ◉ | ||
Φ31 | Φ23 | 4 | ◉ | ||
Φ31 | Φ25 | 3 | ◉ | ||
Φ34 | Φ26 | 4 | ◉ | ||
Φ38 | Φ30 | 4 | ◉ | ||
Φ40 | Φ30 | 5 | ◉ | ||
Φ43 | Φ33 | 5 | ▲ | ||
Φ50 | Φ40 | 5 | ▲ | ||
Φ55 | Φ45 | 5 | ▲ | ||
Φ57 | Φ50 | 3.5 | ▲ | ||
Φ59 | Φ50 | 4.5 | ▲ | ||
Φ60 | Φ50 | 5 | 10 | ▲ | 6 |
Φ70 | Φ61 | 4.5 | 10 | ▲ | 6 |
Φ75 | Φ66 | 4.5 | 10 | ▲ | 6 |
Φ81 | Φ71 | 5 | 10 | ▲ | 8 |
Φ91 | Φ81 | 5 | 10 | ▲ | 8 |
Φ101 | Φ91 | 5 | 11 | ▲ | 8 |
Φ101 | Φ87 | 7 | 11 | ▲ | 8 |
Φ111 | Φ99 | 6 | 12 | ▲ | 8 |
Φ121 | Φ109 | 6 | 12 | ▲ | 9 |
Φ131 | Φ118 | 6.5 | 13 | ▲ | 9 |
Φ141 | Φ128 | 6.5 | 13 | ▲ | 9 |
Φ151 | Φ137 | 7 | 14 | ▲ | 9 |
Φ201 | Φ179 | 11 | |||
Φ300 | Φ270 | 15 |
