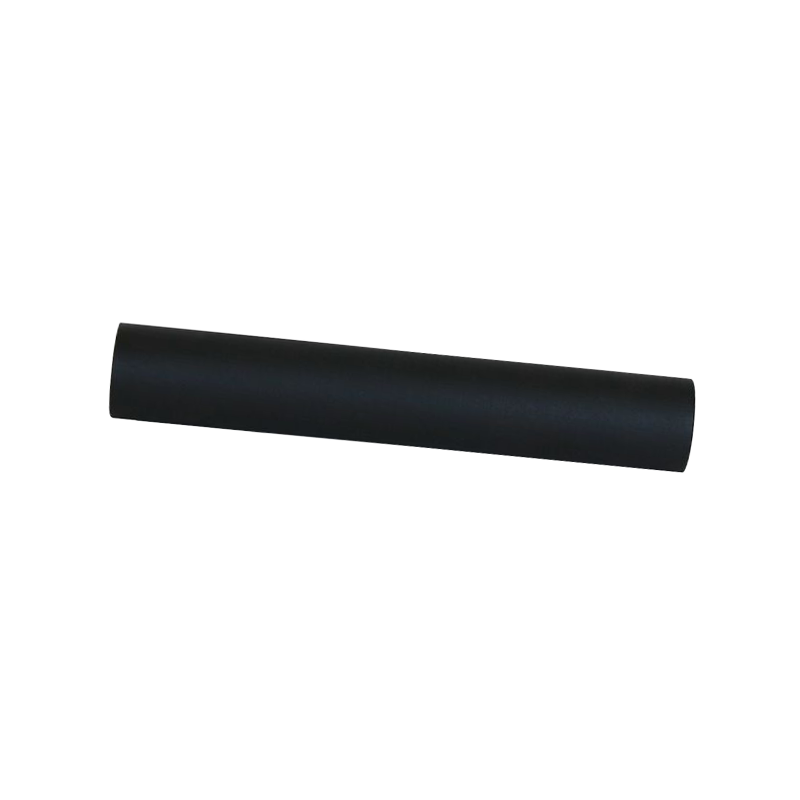

Black anodized layer: Enhances surface hardness and oxidation resistance, while also providing anti-reflective and aesthetic benefits.
Aluminum alloy structure: Lightweight design ensures balance and stability during high-speed operation.
High surface precision: Smooth and uniform roller surface helps maintain flat roll operation.
Wear and corrosion resistant: Suitable for long-term stable operation in various environments.
Easy to maintain: The surface does not easily adhere to impurities, making cleaning simple and extending service life.
Applications: Widely used in guiding and tension adjustment stages in printing, slitting, coating, rewinding, packaging, and film production lines.

| (De)Φ |
(D)Φ |
THICKNESS |
T1 |
T2,T3 |
Number of stiffeners |
| Φ22 |
Φ16 |
3 |
|
◉ |
|
| Φ25 |
Φ20 |
2.5 |
|
◉ |
|
| Φ31 |
Φ23 |
4 |
|
◉ |
|
| Φ31 |
Φ25 |
3 |
|
◉ |
|
| Φ34 |
Φ26 |
4 |
|
◉ |
|
| Φ38 |
Φ30 |
4 |
|
◉ |
|
| Φ40 |
Φ30 |
5 |
|
◉ |
|
| Φ43 |
Φ33 |
5 |
|
▲ |
|
| Φ50 |
Φ40 |
5 |
|
▲ |
|
| Φ55 |
Φ45 |
5 |
|
▲ |
|
| Φ57 |
Φ50 |
3.5 |
|
▲ |
|
| Φ59 |
Φ50 |
4.5 |
|
▲ |
|
| Φ60 |
Φ50 |
5 |
10 |
▲ |
6 |
| Φ70 |
Φ61 |
4.5 |
10 |
▲ |
6 |
| Φ75 |
Φ66 |
4.5 |
10 |
▲ |
6 |
| Φ81 |
Φ71 |
5 |
10 |
▲ |
8 |
| Φ91 |
Φ81 |
5 |
10 |
▲ |
8 |
| Φ101 |
Φ91 |
5 |
11 |
▲ |
8 |
| Φ101 |
Φ87 |
7 |
11 |
▲ |
8 |
| Φ111 |
Φ99 |
6 |
12 |
▲ |
8 |
| Φ121 |
Φ109 |
6 |
12 |
▲ |
9 |
| Φ131 |
Φ118 |
6.5 |
13 |
▲ |
9 |
| Φ141 |
Φ128 |
6.5 |
13 |
▲ |
9 |
| Φ151 |
Φ137 |
7 |
14 |
▲ |
9 |
| Φ201 |
Φ179 |
11 |
|
|
|
| Φ300 |
Φ270 |
15 |
|
|
|
