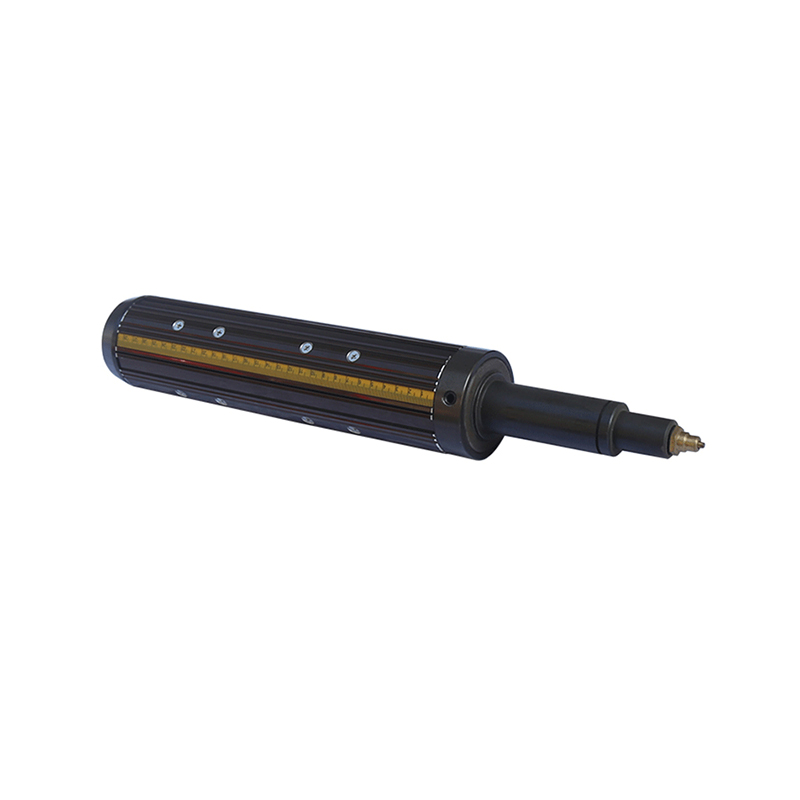

Six-Blade Plate Type Air-Powered Expansion Shaft‌

Six Blade Plate Type Air Powered Expansion Shaft is a high efficiency pneumatic shaft designed for accurate roll core fixation and smooth material handling in advanced production systems. The big selling point with this style of mandrel is the six long metal blades or plates lined up evenly down the body. When you pump shop air into the valve, these plates expand outwards symmetrically, doing a good job of distributing the clamping force uniformly around the entire inside of the roll core. This keeps your stock dead-on centered and stops your cardboard or plastic cores from buckling or going out of round during heavy winding and unwinding cycles.

The air-operated expansion mechanism is fast and responsive, allowing your crew to inflate the bladders to secure a new reel or drop the pressure to slide an empty core off in just a few seconds, which helps trim down your slow changeover times. They machine the core structure for serious structural durability so it can handle heavy load capacities, while the lightweight layout of the outer plates keeps the rotational inertia low, meaning your equipment handles precise tension adjustments smoothly without fighting your line.

Inquire

Details

Uniform Force Distribution	Expansion is achieved by multiple plates (six plates). These plates, acting as expansion elements, have fulcrums distributed throughout the shaft circumference, resulting in more even force distribution and preventing excessive clamping force on one side that could cause roll deformation.
Rapid Expansion/Contraction	Activated by air pressure, expansion or contraction is typically completed within seconds, significantly reducing downtime for roll changes.
High-Precision Applications	The plate-type structure is particularly suitable for thin and light materials such as films, electronic materials, and non-woven fabrics, where high requirements for roll roundness, vibration, and tension uniformity are necessary.
Rugged Material Structure	The shaft is typically made of steel or aluminum alloy, and the outer expansion plates are aluminum alloy blades, offering advantages such as wear resistance and lightweight construction.
Wrapping/Rewinding Equipment Applications	Suitable for industries such as printing, slitting, rewinding, film, paper, and composite materials, improving clamping stability and roll change efficiency.
