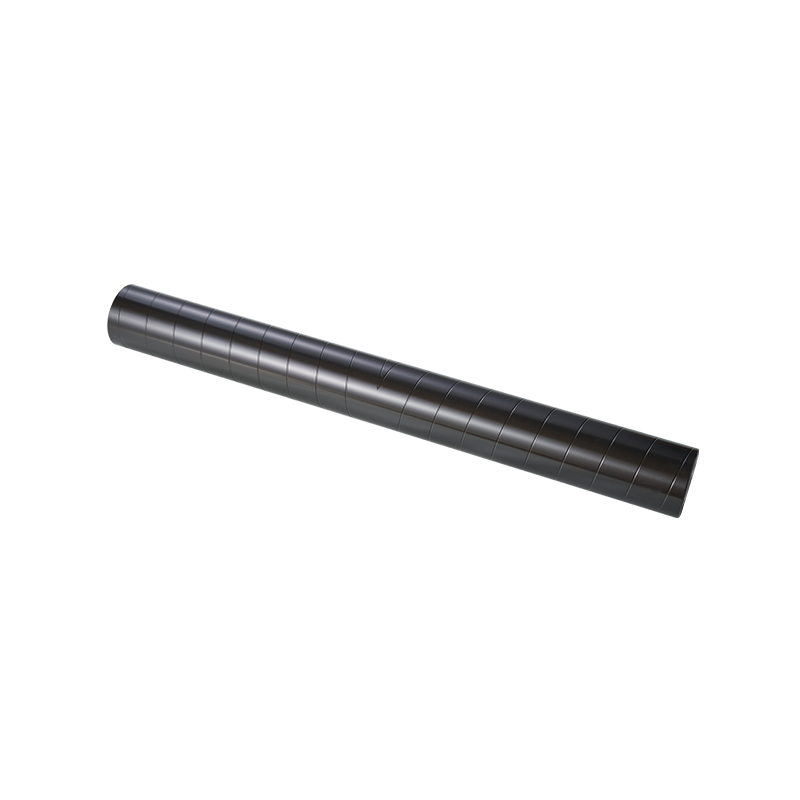

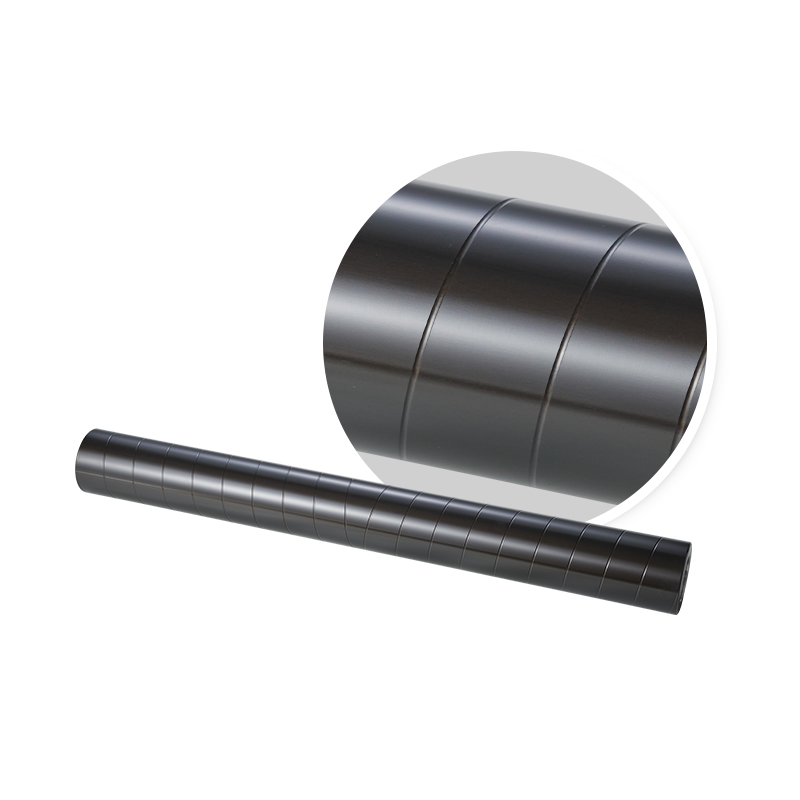

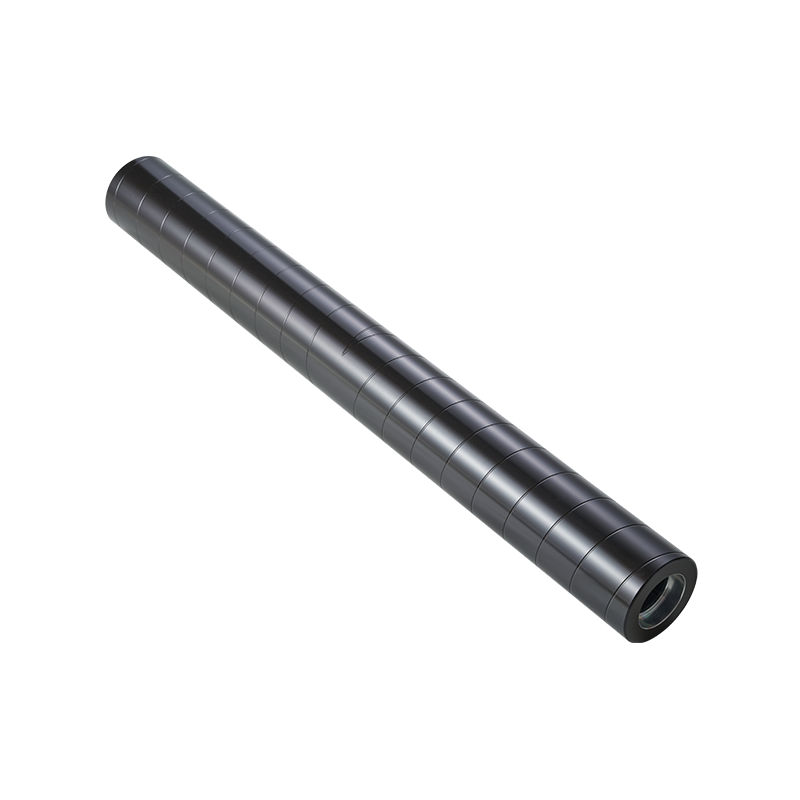

Aluminum's lightweight and wear-resistant properties make this roller both lightweight and durable, reducing the need for frequent replacement. The roller's smooth surface treatment reduces friction and wear during production, extending product life. The aluminum guide roller's ease of installation and maintenance makes daily operation more convenient.
With its good performance and reliability, this aluminum guide roller is a key component for improving production efficiency and product quality in the printing industry. It not only improves production efficiency but also ensures high-quality output, making it an ideal choice for the printing and packaging industries.

(De)Φ |
(D)Φ |
THICKNESS |
T1 |
T2,T3 |
Number of stiffeners |
Φ22 |
Φ16 |
3 |
|
◉ |
|
Φ25 |
Φ20 |
2.5 |
|
◉ |
|
Φ31 |
Φ23 |
4 |
|
◉ |
|
Φ31 |
Φ25 |
3 |
|
◉ |
|
Φ34 |
Φ26 |
4 |
|
◉ |
|
Φ38 |
Φ30 |
4 |
|
◉ |
|
Φ40 |
Φ30 |
5 |
|
◉ |
|
Φ43 |
Φ33 |
5 |
|
▲ |
|
Φ50 |
Φ40 |
5 |
|
▲ |
|
Φ55 |
Φ45 |
5 |
|
▲ |
|
Φ57 |
Φ50 |
3.5 |
|
▲ |
|
Φ59 |
Φ50 |
4.5 |
|
▲ |
|
Φ60 |
Φ50 |
5 |
10 |
▲ |
6 |
Φ70 |
Φ61 |
4.5 |
10 |
▲ |
6 |
Φ75 |
Φ66 |
4.5 |
10 |
▲ |
6 |
Φ81 |
Φ71 |
5 |
10 |
▲ |
8 |
Φ91 |
Φ81 |
5 |
10 |
▲ |
8 |
Φ101 |
Φ91 |
5 |
11 |
▲ |
8 |
Φ101 |
Φ87 |
7 |
11 |
▲ |
8 |
Φ111 |
Φ99 |
6 |
12 |
▲ |
8 |
Φ121 |
Φ109 |
6 |
12 |
▲ |
9 |
Φ131 |
Φ118 |
6.5 |
13 |
▲ |
9 |
Φ141 |
Φ128 |
6.5 |
13 |
▲ |
9 |
Φ151 |
Φ137 |
7 |
14 |
▲ |
9 |
Φ201 |
Φ179 |
11 |
|
|
|
Φ300 |
Φ270 |
15 |
|
|
|
